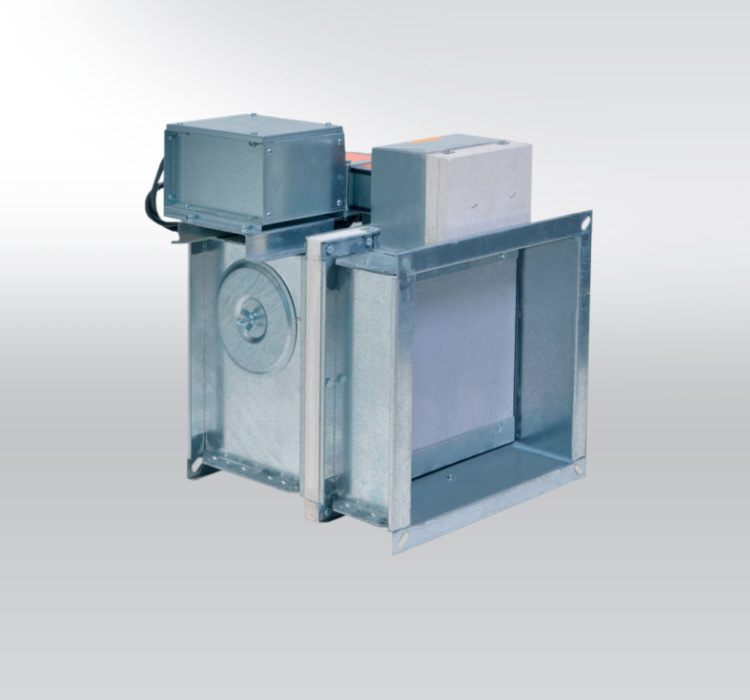

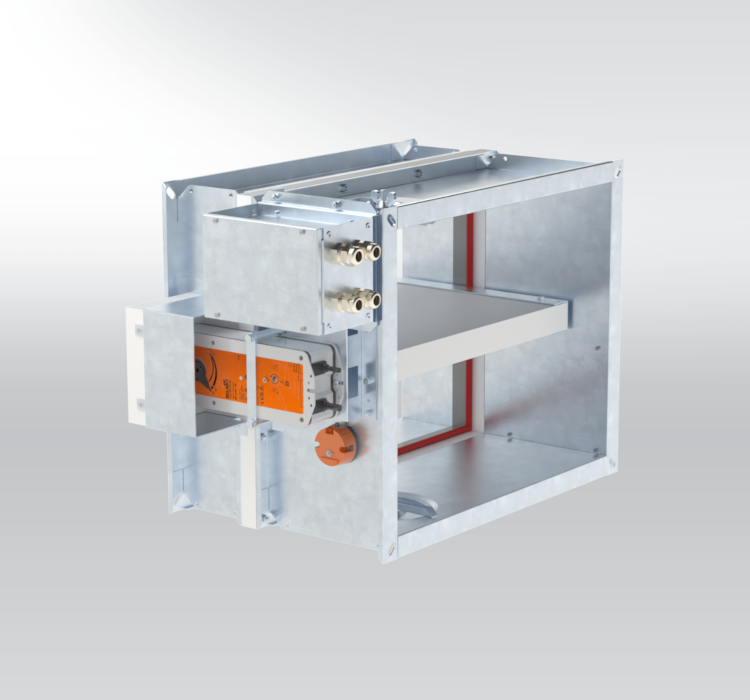

PKTMF-120 Fire damper resistant against seismic events

PKTMF - 120 – Fire damper resistant against seismic events, effects of high pressure and higher air flow velocity.



Characteristics

  • Min. dimensions 200 x 200 x 375 mm;
    max. dimensions 1600 x 800 x 375 mm (square cross-section only, round adapter available)
  • CE certified acc. to EN 15650
  • Tested in accordance with EN 1366-2
  • Classified acc. to EN 13501-3+A1
  • Fire resistance EIS 120
  • External Casig leakage class C, Internal leakage class 2 acc. to EN 1751
  • Corrosion resistant acc. to EN 15650
  • Cycling test in class C 10 000 acc. to EN 15650
  • Damper actuating mechanical, electrical, pneumatical
    or combination
  • Pneumatic control facilitates direct connection to SWAGELOK system
  • Plain bearings – maintenance-free design resistant to high-level seismic stresses Max. airflow 12 m/s
  • Max. pressure difference 7500 Pa (inner pressure / external pressure – static pressure on closed damper blade)
  • Seismic resistance defined as per RRS (EDB, APC) applicable to the site – tested to peak acceleration above 12 G
  • Minimum service life 40 years
