Back to the product list

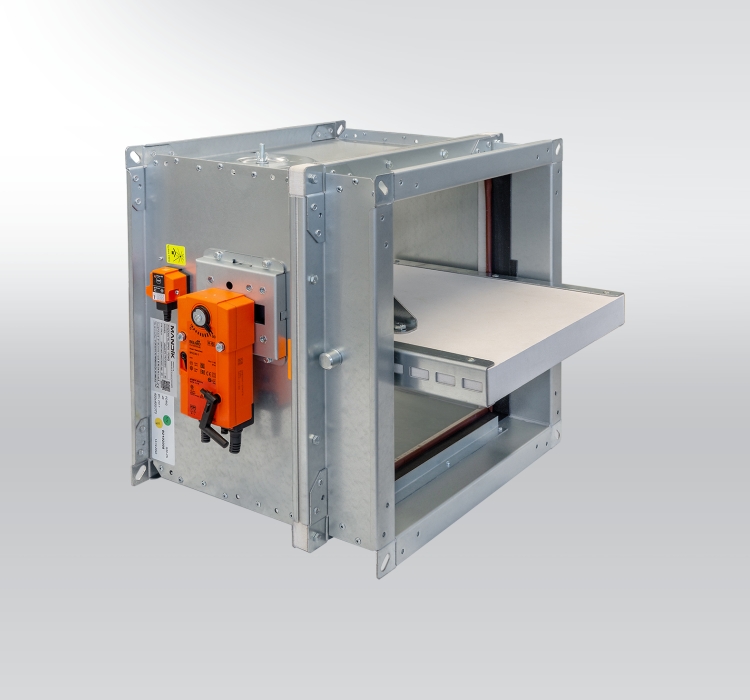

FDMQFire damper

FDMQ – The Damper in the HVAC equipment duct that prevents the spread of fire and combustion products from one fire segment to another by shutting off the airflow at the fixture points.



Characteristics

  • Dampers from 150 × 150 mm to 1 500 × 800 mm
  • CE certified acc. to EN 15650
  • Tested in accordance with EN 1366-2
  • Classified acc. to EN 13501-3+A1
  • External Casing leakage class C,
    Internal leakage class 2 acc. to EN 1751
  • Fire resistance up to EI 90 S
  • Corrosion resistant acc. to EN 15650
  • Cycling test in class Cmod / C10000 – acc. to actuator type, acc. to EN 15650
  • Damper actuating mechanical, or electrical
  • Maximum air speed through opened damper of 12 m/s and pressure difference 1200 Pa
  • Can be used in explosion-hazard environments
