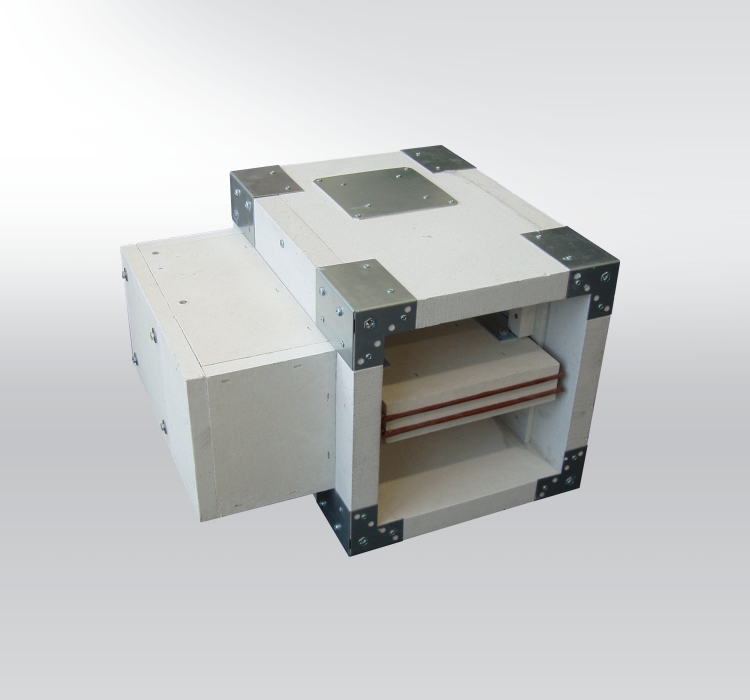

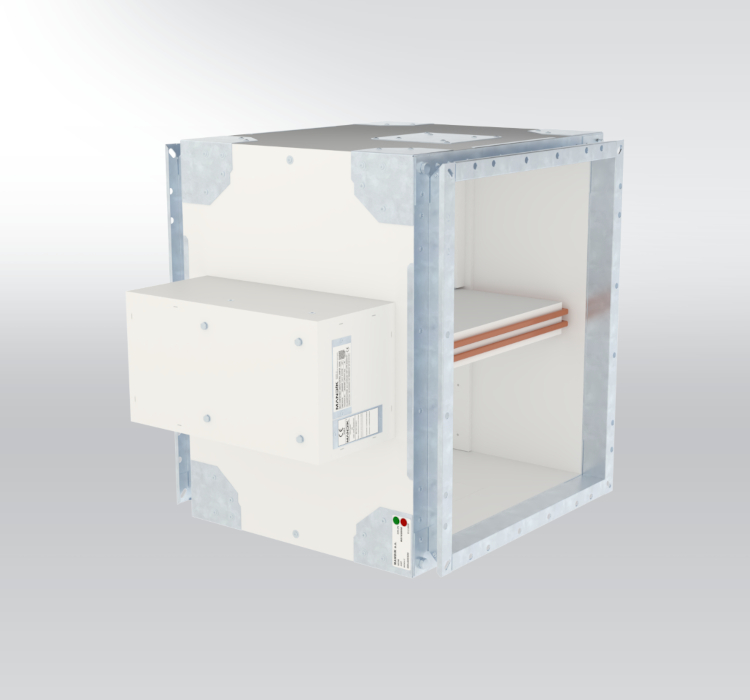

SEDM Multi compartment smoke control damper

SEDM – Multi compartment smoke control damper allows usage in smoke control ducting systems. Suitable for heat and smoke extraction from several comparements at the same time.



Characteristics

  • Square dampers from 180 × 180 mm to 1600 x 1000 mm
  • CE certified acc. to EN 12101-8
  • Tested in accordance with EN 1366-10
  • Classified acc. to EN 13501-4
  • Fire resistance up to EI 120 S, activation AA/MA, HOT 400/30
  • Cycling test in class Cmod acc. to EN 12101-8
  • External Casing leakage class C,
    Internal leakage class 2 acc. to EN 1751
  • Damper actuating by electrical actuator
  • Max. air speed in the system of 15 m/s, allowed pressure up to 500Pa, or underpressure up to -1500 Pa
