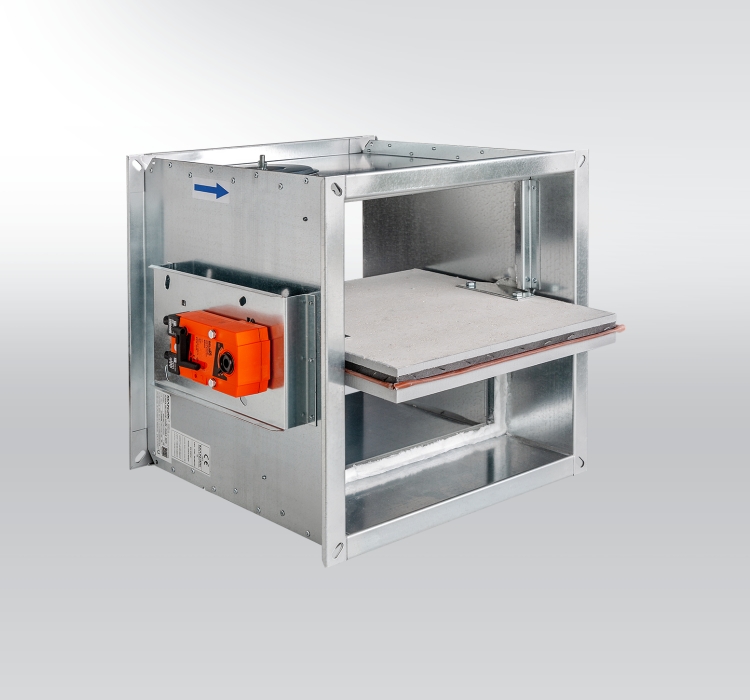

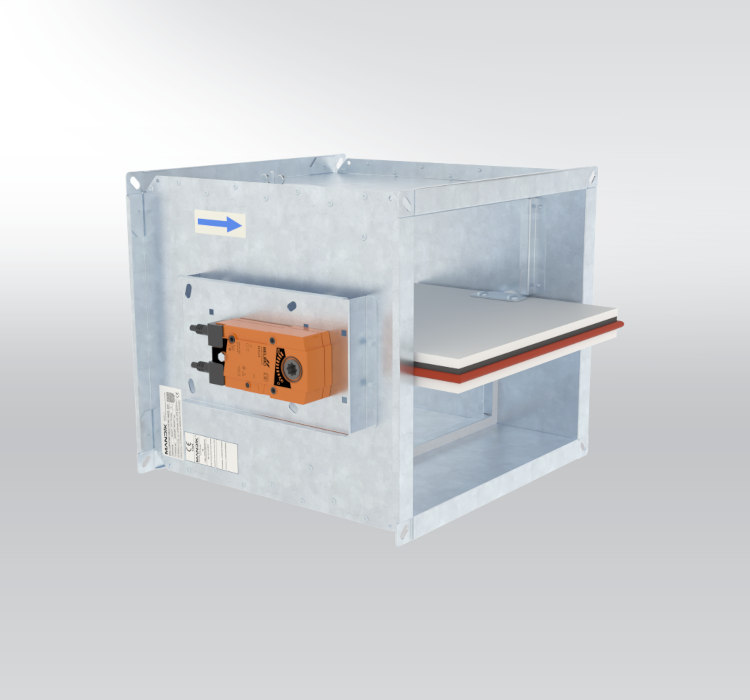

SEDS – Single comparement smoke control damper allows usage in smoke control ducting systems. Suitable for heat and smoke extraction from one comparement.

Characteristics

• Square dampers from 180 × 180 mm to 1600 x 1000 mm
• CE certified acc. to EN 12101-8
• Tested in accordance with EN 1366-10
• Classified acc. to EN 13501-4
• ES 90/600, activation AA
• External Casing leakage class C, Internal leakage class 2 acc. to EN 1751

• Cycling test in class C 300 acc. to EN 12101-8
• Damper actuating by electrical actuator
• Max. air speed in the system of 15 m/s, allowed pressure up to 500 Pa, or underpressure up to - 1000 Pa
